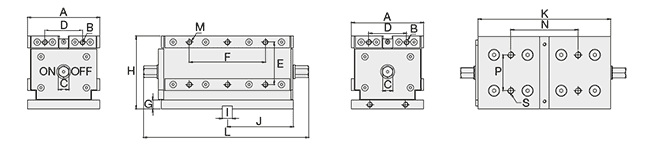

| Maße |
 |
| Maße | |||||||||||||||||
| A | B/M | C | D | E | F | G | H | I | J | K | L | N | P | S | KG | Art.-Nr. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||||
| 76 | M6 | 13 | 40 | 43,5 | 84 | 10 | 78 | 18 | 89,5 | 179 | 213 | 92 | 38 | M8 | 10 | ECMC-75 | |
| 108 | M8 | 13 | 56,5 | 62 | 95 | 12 | 108 | 18 | 99 | 198 | 230 | 100 | 45 | M10 | 20 | ECMC-130 | |
| 133 | M10 | 19 | 69,5 | 78 | 140 | 15 | 134 | 18 | 122 | 244 | 305 | 124 | 66 | M12 | 39 | ECMC-220 | |
| 188 | M10 | 23 | 92 | 122 | 160 | 18,5 | 187,5 | 18 | 139 | 278 | 344 | 140 | 90 | M12 | 70 | ECMC-380 | |
| Alle Angaben in mm bzw. kg | |||||||||||||||||
